Vibrocompaction Design for Volcanic and Alluvial Soils in Pukekohe

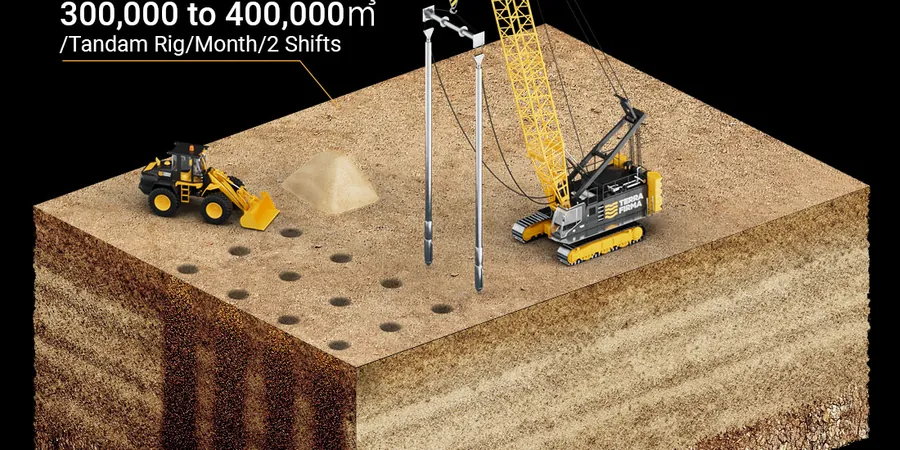

A recent warehouse development off Manukau Road hit a frustrating sequence: firm Puketoka Formation gravels overlying soft, compressible alluvium from the ancient Waikato River floodplain. The differential settlement potential was enough to crack slab-on-grade floors within the first two years. In Pukekohe, where the terrain swings from weathered basalt ridges to saturated silts on the valley floor, standard compaction simply does not reach deep enough. Vibrocompaction design becomes the logical path when you need to densify loose granular soils up to 15 m depth without excavating and replacing thousands of cubic metres of material. Our team models the probe spacing, vibration energy, and withdrawal rate against the specific grain-size distribution of the local Tauranga Group sediments, ensuring the target relative density of 70–85% is achieved before a single footing is poured.

Achieving 85% relative density in Pukekohe's Tauranga Group sands requires matching the vibrator frequency to the soil's natural resonance, typically 16–20 Hz, measured through pre-production trial zones.

Methodology and scope

NZGS Module 3 and the dense sand provisions of NZS 3404:1997 frame the verification requirements we apply on every Pukekohe job. The design process starts with a thorough review of the CPT cone resistance profiles, because the volcanic ash layers common around Pukekohe Hill can create misleading SPT blow counts if the sampler encounters pumice fragments. We specify post-treatment verification testing, typically a combination of CPT testing repeated on the same grid and cross-hole geophysical surveys, to confirm that the target stiffness has been reached. The probe pattern is not generic; in the alluvial corridors near Whangapouri Creek, we tighten the triangular grid to 2.0 m spacing to overcome the higher fines content that dampens vibration transmission. When the client's geotechnical model reveals interbedded organic silts, the vibrocompaction design integrates wick drains or a staged loading sequence, and we often pair the analysis with a liquefaction assessment because the water table in central Pukekohe sits barely 1.8 m below ground level and the seismic demand from the Kerepehi Fault source needs explicit consideration.

Local considerations

Two sites, same suburb, completely different outcomes. On the elevated basalt terrain east of the railway line, vibrocompaction is often unnecessary because the volcanic rock provides a stiff bearing stratum within 2 m of the surface. Move half a kilometre west toward the former swamp margins around Bledisloe Park, and you encounter 12 m of loose, saturated sand that will densify and settle under seismic shaking, threatening buried services and slab foundations. The risk we see repeatedly in Pukekohe is underestimating the spatial variability of the alluvial deposits; a borehole every 30 m simply misses the lens of uncompacted pumiceous silt that collapses when the vibrator passes nearby. Our design reports map the cone resistance variability across the full treatment area and define a verification grid tight enough to catch any under-treated zones before the earthworks contractor demobilises. Ignoring this granularity leaves the owner with a foundation that meets the specification on paper but performs poorly under the 500-year return period earthquake.

Technical parameters

Parameter	Typical value
Typical treatment depth in Pukekohe alluvium	8–15 m below ground level
Target relative density (Dr)	70–85% (post-treatment)
Probe spacing in clean sands	2.5–3.5 m triangular grid
Probe spacing with fines >10%	1.8–2.5 m triangular grid
Vibrator power range	130–180 kW electric/hydraulic
Pre-production trial zone	Minimum 20 m × 20 m with CPT before/after
Post-treatment verification method	CPT, cross-hole, or PMT at 5–10 m centres
Relevant NZGS Module	Module 3: Ground Improvement

Associated technical services

Vibrocompaction Trial Design and Production Specification

We design the pre-production trial zone layout, specifying vibrator frequency, probe penetration rate, and withdrawal increments based on the in-situ grain size curve. The output is a detailed production specification with pass/fail criteria tied directly to CPT cone resistance and relative density targets.

Post-Treatment Verification and QA Auditing

After the ground improvement contractor completes the primary grid, we deploy CPT rigs on the agreed verification pattern, compare before-and-after tip resistance profiles, and issue a compliance report certifying that the design Dr has been achieved across the full treatment footprint.

Applicable standards

NZS 3404:1997 – Steel Structures (dense sand bearing provisions), NZS 4203:1992 – General Structural Design and Design Loadings, NZGS Module 3 – Ground Improvement Design Guidelines, ASTM D6066-11 – Standard Practice for Determining Normalized Penetration Resistance of Sands, ASCE/SEI 7-22 – Minimum Design Loads for Buildings (site class determination post-treatment)

Frequently asked questions

What soil types in Pukekohe respond best to vibrocompaction?

Clean to slightly silty sands and gravels with fines content below 15% are ideal candidates. Much of the Tauranga Group alluvium beneath Pukekohe's commercial zones falls into this category. Soils with more than 20% silt or significant clay layers do not densify effectively with vibration alone and may require stone columns or rigid inclusions instead.

How is the design validated after the vibrator leaves the site?

Validation follows a before-and-after CPT comparison on a grid typically at 5–10 m centres. We require a minimum of one CPT per 200 m² of treated area. The acceptance criterion is achieving the specified cone resistance or relative density at every verification point; any outlier triggers local re-treatment and re-testing.

What is the typical cost range for vibrocompaction design and verification in Pukekohe?

For a standard commercial or subdivision site in Pukekohe, the combined design, trial supervision, and verification package generally falls between NZ$2,560 and NZ$7,960, depending on the treatment area size and the required density of post-treatment CPTs.

Does vibrocompaction reduce liquefaction risk in Pukekohe's seismic environment?

Yes, and this is one of the primary drivers for the treatment. By increasing the relative density of loose saturated sands beyond 70–75%, the soil's cyclic resistance ratio improves significantly. Our designs explicitly target the liquefaction resistance required for the site's seismic hazard level, referencing the NZGS Module 2 and Module 3 guidelines.

How close can vibrocompaction be used next to existing buildings in Pukekohe's town centre?

Vibration monitoring is mandatory within 15 m of existing structures. We specify peak particle velocity limits (typically 5 mm/s for heritage masonry and 15 mm/s for modern reinforced concrete) and design a buffer zone or switch to a reduced-energy perimeter pass. Pre-construction condition surveys of adjacent properties are a standard part of our specification.
