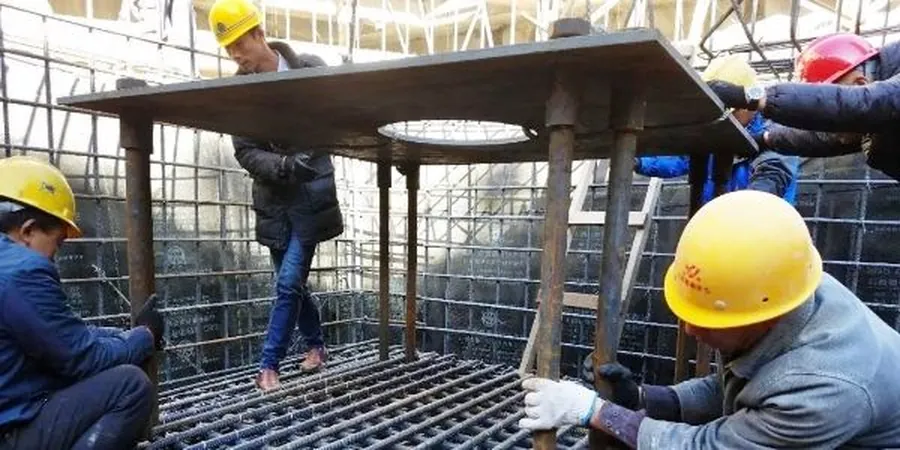

Base Isolation Seismic Design in Pukekohe

Pukekohe sits just 21 km from the Waikato Fault zone, and the 2021 NZ Seismic Hazard Model update confirmed what local engineers already knew: the volcanic-derived soils across Franklin District amplify ground motion in ways that conventional fixed-base construction struggles to handle. Base isolation seismic design changes that equation entirely. Rather than fighting the earthquake, the building is decoupled from the ground through elastomeric or sliding bearings, cutting spectral accelerations at the superstructure by 50 to 70 percent. For developers and asset owners in Pukekohe who need operational continuity after a major seismic event — hospitals, data centres, municipal buildings — this approach shifts the cost-benefit analysis decisively. The upfront investment in isolation hardware typically pays for itself in avoided downtime and reduced structural damage during the design-level earthquake, especially on the softer alluvial soils that underlie much of the town centre and the industrial zones near the railway corridor. When combined with a liquefaction assessment tailored to the Pukekohe subsurface profile, the design package delivers a level of seismic resilience that insurers and tenants increasingly demand.

A properly tuned base isolation system can reduce seismic base shear in a Pukekohe structure by 60% compared to fixed-base design — shifting performance from life-safety to immediate occupancy.

Methodology and scope

The near-surface geology around Pukekohe is dominated by weathered basalt and tephra layers from the extinct Pukekohe Hill volcanic centre, overlying Pleistocene-era pumiceous alluvium that exhibits stiffness contrasts of up to 4:1 across short lateral distances. This stratigraphy creates a textbook case for base isolation: the site period often falls between 0.4 and 0.8 seconds, right where spectral accelerations peak under the NZS 1170.5 hazard spectrum. The isolation system shifts the fundamental period of the structure to around 2.0 to 3.0 seconds, placing it on the descending branch of the response curve where lateral forces drop dramatically. For projects where the bearing design demands precise soil-structure interaction parameters, the MASW survey provides the shear-wave velocity profile needed to anchor the time-history analyses. Key technical dimensions that define a Pukekohe base isolation design include: the displacement demand at the isolation plane — typically 300 to 500 mm for a 1-in-500-year event given the proximity to active faults; the wind-restraint threshold that prevents nuisance movement under service conditions; the moat wall clearance and utility connections that must accommodate the full design displacement without binding; and the long-term creep and aging characteristics of the elastomer compounds specified for the local soil chemistry, which can be mildly acidic due to agricultural land use.

Local considerations

Compare a project on the well-drained volcanic loams of the Pukekohe Hill slopes with one on the Manukau Lowlands alluvium near the town centre, and the seismic risk profile changes dramatically. The elevated sites benefit from relatively stiff founding conditions and shorter site periods, while the lowland sites face deeper soft-soil amplification, longer basin-edge effects, and a higher probability of liquefaction-induced settlement under the design earthquake. Base isolation handles both scenarios, but the isolation parameters — effective stiffness, characteristic strength, and damping ratio — must be tuned to the specific soil column. A generic isolation design copied from a Christchurch or Wellington project will not perform correctly in Pukekohe; the seismological signature is different, with a higher contribution from shallow crustal events on the Waikato Fault system compared to the subduction-zone motions that dominate further south. The detailing of the isolation interface also becomes critical when the groundwater table is within 2 metres of the surface, as it is across much of the Pukekohe lowlands, requiring subgrade drainage and waterproofing of the isolation pit that can withstand the full displacement cycle without compromising the bearing performance.

Technical parameters

Parameter	Typical value
Design standard	NZS 1170.5:2004 + NZS 3404
Isolation plane period	2.0–3.5 s (target range)
Maximum considered earthquake (MCE) displacement	300–550 mm (site-dependent)
Bearing types evaluated	LRB, HDRB, FPS (triple pendulum)
Superstructure force reduction	50–70% vs. fixed-base
Soil profile class (typical)	Class C to D (NZS 1170.5)
Wind restraint threshold	1-in-25-year return wind, serviceability limit

Associated technical services

Isolation System Feasibility & Concept Design

Site-specific evaluation of isolation benefit versus cost, comparing fixed-base, isolated, and hybrid solutions. Includes preliminary bearing selection, moat geometry, and a net-present-value analysis of seismic risk reduction.

Nonlinear Time-History Analysis

Full 3D finite-element modelling with suite of 7+ ground motion records spectrally matched to the Pukekohe site hazard. Outputs include bearing hysteresis loops, floor response spectra, and peak displacement envelopes.

Bearing Specification & Prototype Testing Plan

Detailed performance specification for elastomeric or sliding bearings per ISO 22762, including prototype test matrix, acceptance criteria, and quality control documentation for the manufacturer.

Construction-Phase Peer Review & Inspection

Review of shop drawings, bearing installation procedures, moat cover detailing, and utility isolation connections. Site visits during bearing placement and pre-compression to verify compliance with design intent.

Applicable standards

NZS 1170.5:2004 (Structural design actions – Earthquake actions), NZS 3404:1997 (Steel structures, with seismic provisions), ASCE/SEI 7-22 (Minimum design loads – Chapter 17, seismic isolation), NZSGS Guidelines for seismic design of base-isolated structures, ISO 22762:2018 (Elastomeric seismic-protection isolators)

Frequently asked questions

How much does base isolation seismic design cost for a Pukekohe project?

Our design fees for a base isolation package — covering feasibility, detailed analysis, bearing specification, and construction review — typically range from NZ$7,050 to NZ$13,550 depending on the structural complexity, number of isolators, and the extent of peer review required. This does not include the cost of the isolation bearings themselves, which are procured separately from specialist manufacturers.

Does base isolation work on the soft soils common in parts of Pukekohe?

Yes, but it requires careful site-specific analysis. Soft soils amplify long-period ground motion, which can increase the displacement demand on the isolation system. We address this by incorporating the site soil profile directly into the nonlinear time-history model, often using site response analysis to generate soil-amplified ground motions. The isolation plane is then designed to accommodate the larger displacements while still reducing superstructure forces.

What types of buildings in Pukekohe benefit most from base isolation?

The economic case is strongest for buildings where post-earthquake functionality is non-negotiable: hospitals, emergency response centres, data centres, and key infrastructure. It also makes strong financial sense for heritage structures where conventional seismic strengthening would be invasive, and for new commercial buildings on high-seismicity sites where reduced damage translates into lower insurance premiums and faster business recovery.

How long does the base isolation design process take?

The design timeline depends on the project stage at which we are engaged. A feasibility study with preliminary bearing sizing can be completed in 3–4 weeks. Full detailed design including nonlinear time-history analysis and coordination with the structural engineer typically requires 6–10 weeks. Engaging the isolation designer early — ideally during concept design — avoids costly redesign later and allows the isolation interface to be integrated cleanly into the structural and architectural scheme.
