Pile Foundation Design in Pukekohe: Geotechnical Solutions for Volcanic Soils

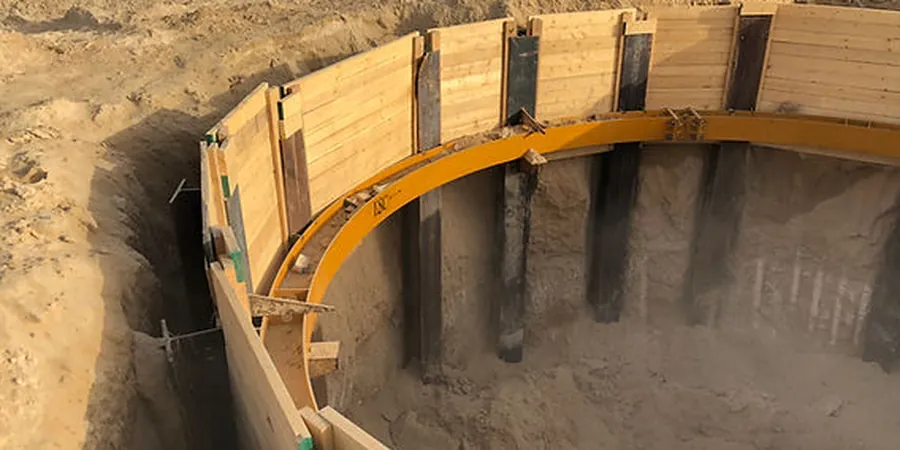

Pukekohe's landscape—shaped by ancient basalt flows and a climate that sees over 1,300 mm of annual rainfall—creates a demanding environment for deep foundations. The city sits at 60 meters above sea level on the South Auckland volcanic field, where weathered basalt interbeds with alluvial silts. These deposits demand a pile foundation design approach calibrated to local ground conditions: stiff residual clays overlying variable rockhead, intersected by peat lenses in lower-lying areas near the Pukekohe Hill slopes. Our technical team applies site-specific analysis, moving beyond generic bearing capacity formulas to model the actual soil-structure interaction. For preliminary ground characterization, we often integrate in-situ permeability data to assess drainage around pile shafts, a factor that significantly influences skin friction in the Franklin District's moisture-sensitive soils.

Pile behavior in Pukekohe's volcanic clays is governed less by the rock socket itself and more by the degradation of shaft friction under seasonal moisture fluctuation.

Methodology and scope

Ground conditions shift markedly across the Pukekohe area. In the elevated terrains east of the railway line, basalt-derived red-brown clays dominate: these are high-plasticity materials with moderate to high shrink-swell potential. A pile here works primarily through shaft adhesion, requiring careful evaluation of the soil's shear strength after saturation cycles. Westward toward the Waikato River floodplain, the profile transitions to softer silts and occasional peat—where end-bearing piles socketed into competent basalt become the rational choice. The contrast between these two sectors illustrates why pile foundation design in Pukekohe is never a copy-paste exercise. Our methodology quantifies both the undrained shear strength of the cohesive layers and the rock mass quality of the underlying basalt using the GSI system. When the upper soils show collapsible tendencies, we also reference stone columns as a ground improvement alternative that can precede pile installation to homogenize the bearing stratum and reduce negative skin friction.

Local considerations

Pukekohe lies within a moderate seismic hazard zone, with a peak ground acceleration of 0.21g for a 500-year return period on Class C soils—a parameter that directly influences pile foundation design. The most significant risk is not structural failure of the pile itself, but the development of negative skin friction: when soft alluvial or peat layers consolidate around the pile shaft, they impose a downdrag load that can exceed the structural capacity if not explicitly modeled. A second concern is the potential for localised collapse of the basalt rockhead—where cavities or weathered seams create abrupt changes in end-bearing stiffness. Our design approach addresses these risks by incorporating a neutral plane analysis for downdrag and by specifying at least one borehole per pile group penetrating a minimum of 5 meters into competent rock. The 2016 Kaikōura earthquake reminded the entire North Island that long-period ground motions can affect deep foundations even at considerable epicentral distances.

Technical parameters

Parameter	Typical value
Design standard for steel piles	NZS 3404:1997 (Steel Structures)
Seismic ductility consideration	NZS 1170.5:2004 (Seismic Actions)
Typical pile diameter range (bored piles)	450 mm – 900 mm
Typical rock socket depth in basalt	1.5 m – 3.0 m (subject to rock quality)
Load test protocol	ASTM D1143 / NZGS Static Load Test Guidelines
Corrosion allowance (buried steel)	0.03 mm/year (aggressive volcanic soils)

Associated technical services

Axial Capacity and Settlement Analysis for Pukekohe Soil Profiles

We compute ultimate and serviceable shaft and base resistances using t-z and q-w curve methods, calibrated to site-specific CPT and laboratory test results from the volcanic sequence. The analysis explicitly separates the drained and undrained responses of the basalt-derived clays, producing load-settlement curves that inform pile length and diameter optimization.

Lateral Load and Seismic Pile Design

Using p-y analyses (Reese et al.) and NZS 1170.5 spectra, we evaluate the pile group's response under lateral spread and inertial loading. This includes moment-curvature assessment of the pile section, determination of the critical pile length where yielding may occur, and specification of confinement reinforcement for ductile behavior in the upper 5 to 8 pile diameters.

Applicable standards

NZS 3404:1997 – Steel Structures (for driven and bored steel piles), NZS 4203:1992 – General Structural Design and Loadings (withdrawn but referenced in legacy structures), NZS 1170.5:2004 – Structural Design Actions – Earthquake Actions, NZGS Guidelines for the Design and Construction of Pile Foundations

Frequently asked questions

What is the typical cost range for pile foundation design in Pukekohe?

For a standard residential or light commercial project in the Pukekohe area, the design fee typically ranges between NZ$3,060 and NZ$10,700, depending on the number of piles, the complexity of the ground profile, and whether dynamic load testing is required. This covers the geotechnical interpretation, capacity calculations, construction drawings, and a site visit during installation.

How deep do piles typically need to go to reach competent rock in Pukekohe?

It varies considerably by location. East of the railway line, competent basalt is often encountered between 5 and 12 meters depth. Toward the Waikato River floodplain west of town, piles may extend to 15–20 meters before reaching a rockhead of sufficient quality to serve as an end-bearing stratum. A preliminary borehole is essential to confirm depth and rock mass conditions at each site.

Does the volcanic soil in Pukekohe cause corrosion issues for steel piles?

Yes, the basalt-derived clays are slightly acidic (pH 5.5–6.5) and can exhibit low electrical resistivity when saturated, which creates a mildly aggressive environment for buried steel. Our designs incorporate a sacrificial corrosion allowance of 0.03 mm per year over the design life of the structure, applied to the pile section in the zone of fluctuating groundwater. Protective coatings or the use of concrete-filled steel tubes can also be specified for high-risk profiles.
