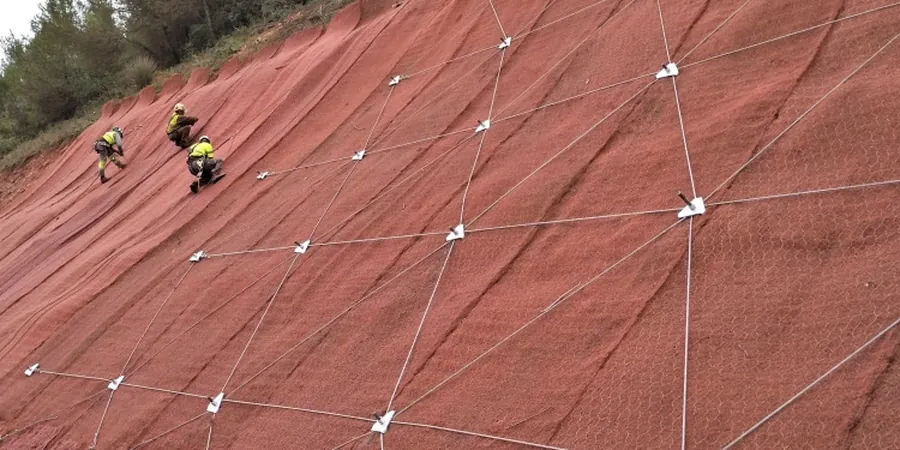

Slope Stability Analysis for Pukekohe Sites: Practical Geotechnical Assessment

Across the Franklin district, the weathered volcanic soils around Pukekohe behave differently than what a textbook might suggest. You get these stiff, clayey silts near the surface that can stand near-vertical in a trench for weeks—until it rains for three days straight, and then you have a different material entirely. The local terrain, shaped by the South Auckland volcanic field, introduces basalt-derived residual soils and layers of tephra that demand a careful look before any cut or fill is finalised. Our job, as a geotechnical lab, is to pin down the actual drained and undrained parameters so the slope stability analysis in Pukekohe reflects the ground as it really is, not a generic assumption. A routine part of our workflow is pairing shear strength data with a shear wave velocity profile when a site sits within 200 metres of a stream or gully—something we see frequently in the Patumahoe fringe.

A slope can look stable for years and fail in one wet winter—residual strength, not peak, controls the long-term factor of safety.

Methodology and scope

The foundation geology here often features Mahurangi Limestone underlying younger basalt flows and alluvial deposits in the valley floors. What this means for a slope stability assessment in Pukekohe is that you cannot rely on a single strength envelope across the whole profile. We regularly encounter transitional zones where residual basalt clay grades into weathered limestone, and the effective friction angle can shift from 28° to 36° over a vertical metre. The analysis must account for that. Our lab runs consolidated-undrained triaxial tests with pore pressure measurement on undisturbed Shelby tube samples to get the c’ and φ’ values that feed into limit equilibrium models. For cuts deeper than four metres in the Pukekohe East area, where relic slip surfaces are known from geological mapping, we also run ring shear tests to capture residual strength. That residual value is what governs long-term stability after construction disturbs the fabric of the soil. The field investigation couples directly with the lab programme: piezometers track the seasonal water table, and inclinometer casings let us verify movement over time. When the brief includes a retaining structure at the toe, the active earth pressure coefficient derived from triaxial data becomes a critical design input.

Local considerations

A recent earthworks job on Pukekohe Hill Road started with what looked like a straightforward 5-metre cut for a residential platform. The initial site investigation logged stiff, low-plasticity silt to depth, and the contractor assumed a 1H:1V batter would hold through the winter. We ran a series of multistage triaxial tests and picked up a distinct sensitivity in the tephra layer at 3.2 metres—peak strength dropped by over 40 percent once remoulded strain exceeded 5 percent. That single detail changed the earthworks design completely. The slope stability analysis in Pukekohe had to account for progressive failure, not just an instantaneous slip circle. The final solution involved a gentler 2H:1V batter combined with sub-horizontal drains to keep the phreatic surface below the critical slip surface. Without that level of lab detail, the original batter would have stood for a season or two and then failed during a heavy rainfall event. The lesson from Pukekohe is that weathered volcanic sequences are forgiving until they are not.

Technical parameters

Parameter	Typical value
Effective friction angle (φ')	24°–36° (basalt clay to weathered limestone)
Effective cohesion (c')	2–15 kPa depending on cementation
Residual friction angle (φr)	12°–20° (tephra and weathered zones)
Saturated unit weight	18.5–21.0 kN/m³
Hydraulic conductivity (field)	1×10⁻⁷ to 5×10⁻⁵ m/s
Analysis method	Bishop, Spencer, Janbu (SLD/LEM)
Target factor of safety (static)	1.5 (permanent), 1.3 (temporary works)

Associated technical services

Site-Specific Laboratory Testing Programme

We design a testing schedule around the logged stratigraphy: CU triaxial with pore pressure measurement, ring shear for residual strength on identified slip surfaces, Atterberg limits, and bulk unit weight. All results are reviewed against the NZGS soil classification and delivered with a full QA report under our ISO 17025 accredited system.

Limit Equilibrium Modelling and Sensitivity Analysis

Using Spencer and Morgenstern-Price methods, we model circular and non-circular failure surfaces calibrated to the lab-derived strength envelope. We run sensitivity analyses on the position of the phreatic surface, which is the single most influential parameter in Pukekohe’s wet winter conditions.

Construction Phase Verification

Once earthworks begin, we verify that the exposed ground matches the investigation model. We run index testing on bulk samples taken from the batter face, read piezometer data weekly, and can mobilise inclinometer surveys if movement thresholds are approached during prolonged rainfall.

Frequently asked questions

What triggers a slope stability assessment under the Pukekohe subdivision rules?

The Auckland Council Unitary Plan, which applies to Pukekohe, requires a slope stability assessment for any building platform or earthworks within a slope risk overlay or where cut and fill heights exceed 2 metres. Our reports address the specific engineering requirements of clause C4 of NZS 4404:2010.

How much does a slope stability analysis cost for a typical Pukekohe residential site?

For a single residential platform with a moderate cut in the Pukekohe area, the investigation and analysis typically falls in the NZ$1,790 to NZ$7,400 range, depending on the number of boreholes, the depth of the failure surface being investigated, and the complexity of lab testing required to capture residual strength parameters.

How long do you need to complete the lab testing for a slope stability job?

A standard triaxial testing programme with three effective confining pressures takes about four to five weeks from sample arrival to final report. Ring shear testing for residual strength adds another two weeks. We can fast-track the index testing portion in under a week if the contractor needs confirmation before battering begins.

Can you analyse a slope that has already started moving?

Yes. We approach a failing slope by first installing inclinometers and piezometers to define the active slip surface depth and the groundwater regime. We then sample across that surface for ring shear testing to establish the residual friction angle, which feeds a back-analysis model to calibrate strength parameters and design a stabilisation scheme.

What is the difference between peak and residual strength in Pukekohe soils?

In the weathered basalt clays and tephra layers we see across Pukekohe, peak friction angles can be 28° to 34°, but after strain softening—especially on pre-existing shear surfaces—the residual friction angle often drops to 12° to 20°. Long-term slope stability is governed by that lower residual value, which is why ring shear testing matters.
