The ground shifts noticeably between the deep, friable volcanic loams around Pukekohe Hill and the heavier, more plastic clay pockets out toward the Pukekohe East valley. In our experience, this geological patchwork across the Franklin area, shaped by ancient Waikato basin eruptions, means you cannot apply a one-size-fits-all approach to earthworks. A contractor compacting a subgrade in the Valley Road industrial zone often faces a completely different material than a developer working a residential site up by the golf course. The Proctor test becomes the essential starting point to define the moisture-density relationship for each distinct soil layer, and pairing it with a grain size analysis helps us quickly identify whether the material is a well-graded ash or a sensitive clay that will turn to slurry under the region's frequent winter rain.
A 2% variance in moisture content from optimum can halve the achieved dry density in Pukekohe's volcanic ash-derived soils, making field control absolutely critical.
Methodology and scope

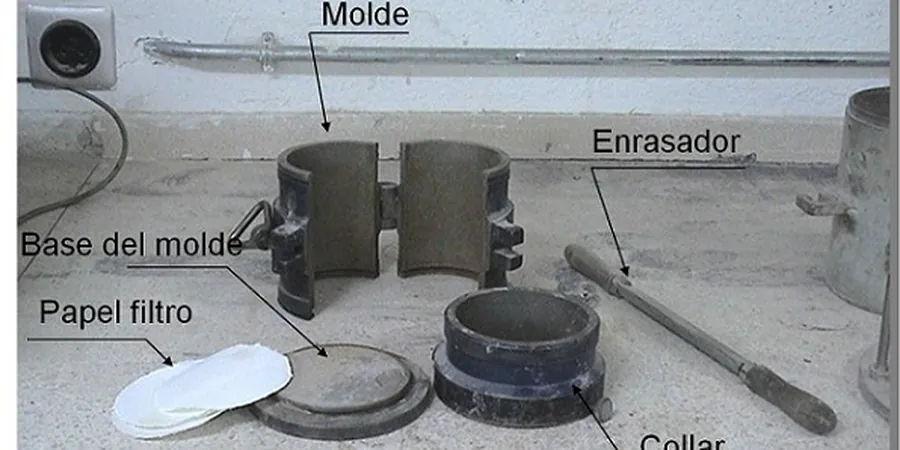

Under NZS 4402, the standard for soil compaction tests in New Zealand, the Proctor test remains the backbone of fill quality control, and in a town like Pukekohe where the horticultural land use is transitioning to residential subdivisions, this standard becomes especially relevant. The method simulates the mechanical compaction imparted by typical site rollers, establishing a clear benchmark for the maximum dry density and optimum moisture content. We most commonly execute the standard Proctor on the silty volcanic topsoils and the modified Proctor on the deeper, structured clays found beneath the weathered ash mantle. The difference in compactive effort between the two procedures can shift the density target by over 10%, which directly influences the number of roller passes and the final bearing capacity of a building platform. A poorly compacted lift here, left just a few percent dry of optimum, can collapse upon wetting, a failure mechanism we've seen repeatedly in the area's collapsible ash deposits.
Local considerations
The weathered tephra layers blanketing Pukekohe are notorious for their metastable structure—they can hold steep cuts when dry but slump rapidly once saturated. A key local statistic from the Waikato Regional Council indicates that the unconfined compressive strength of some allophane-rich soils can drop by over 60% between dry and wet states. Ignoring the Proctor test in this environment introduces a real risk: fill placed too dry may pass a visual check but will densify erratically under traffic, while material compacted too wet traps pore pressure and never achieves its target stiffness. The result is differential settlement in residential slabs, cracked pavements in new subdivisions, and failed retaining wall backfill. When the winter rains saturate the ground above the clay pan, the drainage becomes slow, and any poorly compacted layer acts as a perched water trap, accelerating the degradation of the overlying pavement or foundation.
Frequently asked questions
What is the difference between the Standard and Modified Proctor tests?
The key difference lies in the compactive effort. The Standard Proctor uses a 2.5 kg hammer falling 300 mm in three layers, designed to replicate the energy of older or lighter compaction equipment. The Modified Proctor uses a 4.5 kg hammer falling 450 mm in five layers, simulating the much higher energy of modern heavy vibratory rollers. For a Pukekohe commercial building pad expecting high axle loads, the modified test is almost always the correct choice.
How much does a Proctor test cost in the Franklin area?
For a single Proctor test (Standard or Modified) on a sample sourced from Pukekohe, the fee typically ranges from NZ$170 to NZ$330, depending on the complexity of the soil and the turnaround time required. We can usually provide a firm quote once we've seen the material.
Why do the volcanic soils around Pukekohe need special attention during compaction?
The allophane-rich ash soils common here have a very high natural moisture content and a unique microstructure that can collapse if compacted incorrectly. They are also highly sensitive to remoulding; overworking these soils can turn them into a sticky mess. A precise Proctor target is essential to avoid over-compaction and to manage their high sensitivity to seasonal moisture changes.
How long does it take to get the test results?
A standard turnaround is typically 3 to 5 working days from sample receipt. However, we understand the pace of earthworks and can arrange a 24-hour expedited service for urgent situations where a site crew is waiting on density targets to proceed with the next lift.
